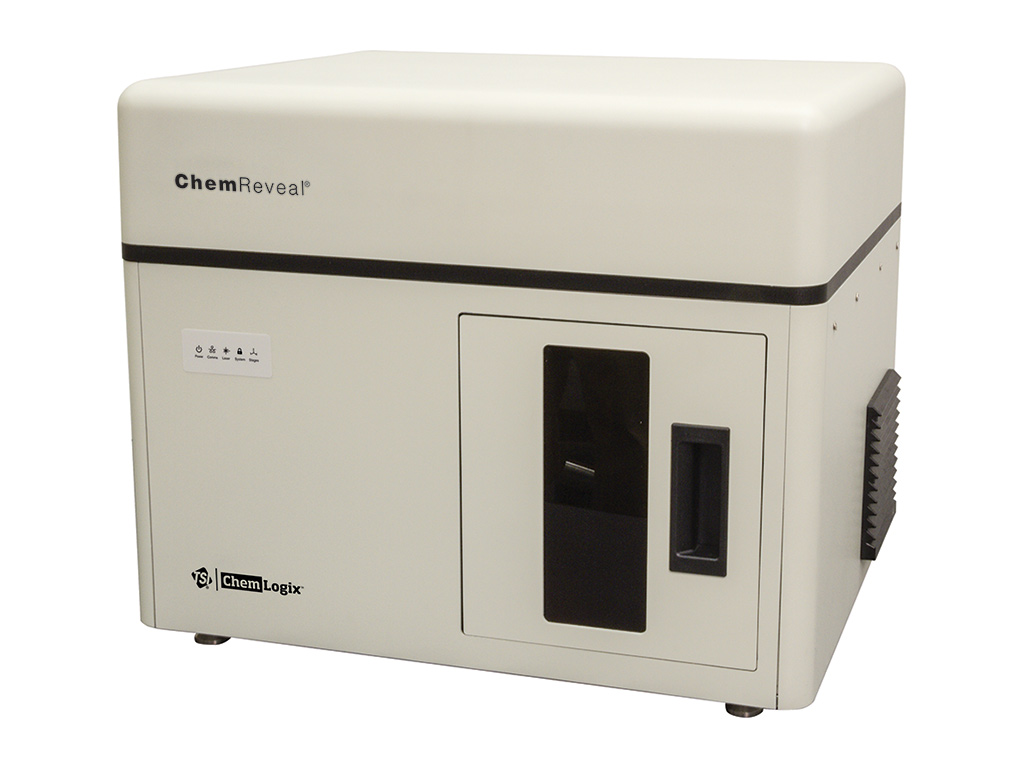

ChemReveal LIBS Desktop Elemental Analyzer 3766

Model Number: 3766

The ChemReveal® LIBS Desktop Elemental Analyzer offers direct chemical analysis for virtually every element in virtually all solid materials. Built with advanced laser-induced breakdown spectroscopy (LIBS), the ChemReveal analyzer is the ideal instrument for fast elemental analysis when chemistry may be unknown. It's helpful for pre-screening and easier to use than many other methods.

Discontinued

Product Details

ChemReveal analyzer measures organic elements (C, H, O, N), truly light elements (e.g. Li, B, Be, Na, Mg), and heavy metals simultaneously. With high-resolution imaging of samples and computer-controlled sample manipulation, the ChemReveal analyzer enables detailed spatial and depth profiling of solid samples. It is perfect for use on probing films and coatings. Designed for laboratory use, with both basic- and advanced-level user interfaces, the ChemReveal LIBS Desktop Analyzer is optimal for researchers, scientists, and test technicians who are looking to quickly assess the element composition of solid samples.

ChemReveal analyzer comes equipped with detailed spectral investigation, customer-built and pre-loaded libraries/calibrations, and ChemLytics™ software that supports method development. ChemLytics software provides the tools you need for the classification and quantification of elements and chemical properties in your materials. For advanced users, ChemLytics Plus™ software works with industry-standard chemometric software that creates multivariate models for quantification in complex matrices, and library matching for challenging positive material identification.

ChemReveal Model Options:

Model Number

Laser Wavelength (nm)

Spectrometer Type
3464 1064 4 Channel
3466 266 4 Channel
3764 1064 7 Channel
3766 266 7 Channel
3964 1064 Echelle
3966 266 Echelle



Applications

  • Metals
  • Positive Material Identification
  • Pharmaceuticals
  • Environmental
  • Geochemistry
  • Glass and Ceramics
  • Nanomaterials
  • Forensics
  • Many more...

Features and benefits

  • Laser-induced breakdown spectrometry (LIBS) for broad elemental analysis - including Light elements of Z <12 (e.g. C, H, O, N, Li, B, Be) and heavy elements
  • Rapid analysis, from seconds to minutes
  • Little or no sample preparation. Solid samples analyzed as is, or pelletized powders (excipients or binding agents optional)
  • Less sample is required than with other elemental analyzers
  • Depth profiling and spatial mapping at a micron-scale
  • Micro- to macro- analysis for targeted and flexible spot analysis
  • Qualitative sample classification or quantitative element concentrations
  • Configurable laser and detector choices to suit your applications
  • Detection limits in 10s of ppm for most elements
  • TSI global service and support
